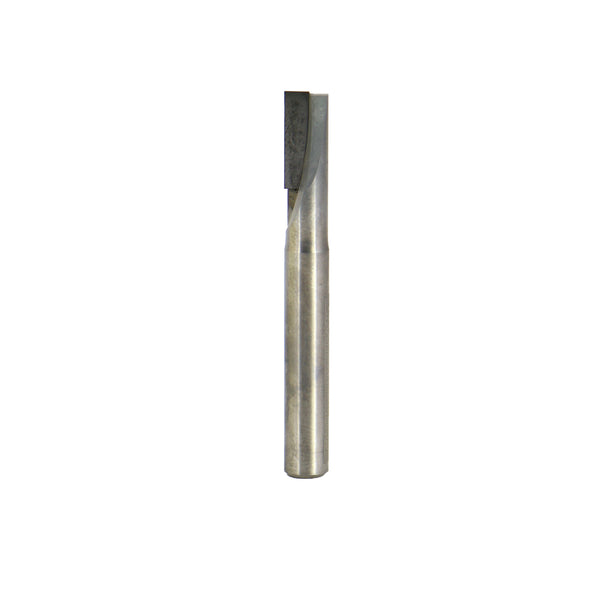

CNCShop - 1301PCD-6 - 6mm A2 PCD, 6mm shk, 16mm cut Router bit CNCShop - 1301PCD-6 - 6mm A2 PCD, 6mm shk, 16mm cut Router bit

This PCD tipped cutter has been specially developed to cut High mineral core A2 composite Material.

This tool can cut accurately and cleanly cut A2 up to 15m/min.

Cutting conditions for the 6mm endmill, needs changing to: Feed rate between 12500mm/min and 15000mm/min.

• Cut Diameter: 6mm
• Shank: 6mm
• Cut Length: 16mm
• Overall Length: 50mm

Primary Purpose: A2 (High Mineral) Comp

Materials: A2 (High Mineral) Comp, Fiberboard, High Pressure Laminate

Part Number: 1301PCD-6
