Hypertherm - 1-15563 Premium High Pressure Seal Kit Hypertherm - 1-15563 Premium High Pressure Seal Kit

€211,28
SKU: 1-15563
Rebuild Kit
Hypertherm
Description Description

This will service one full intensifier (left & right).


If you have replaced your end caps to the new style, you will need kit 1-17437 instead containing the gaskets.

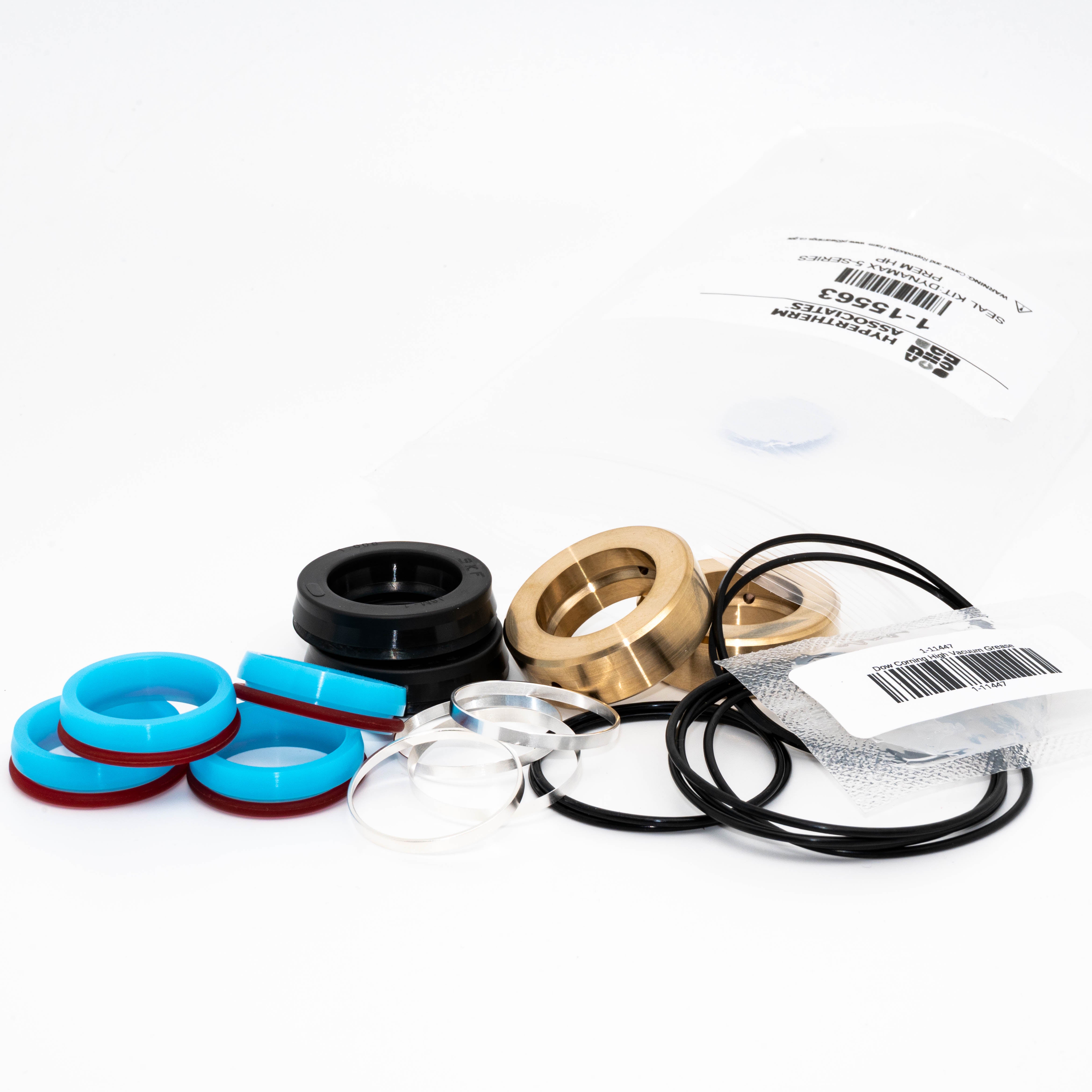

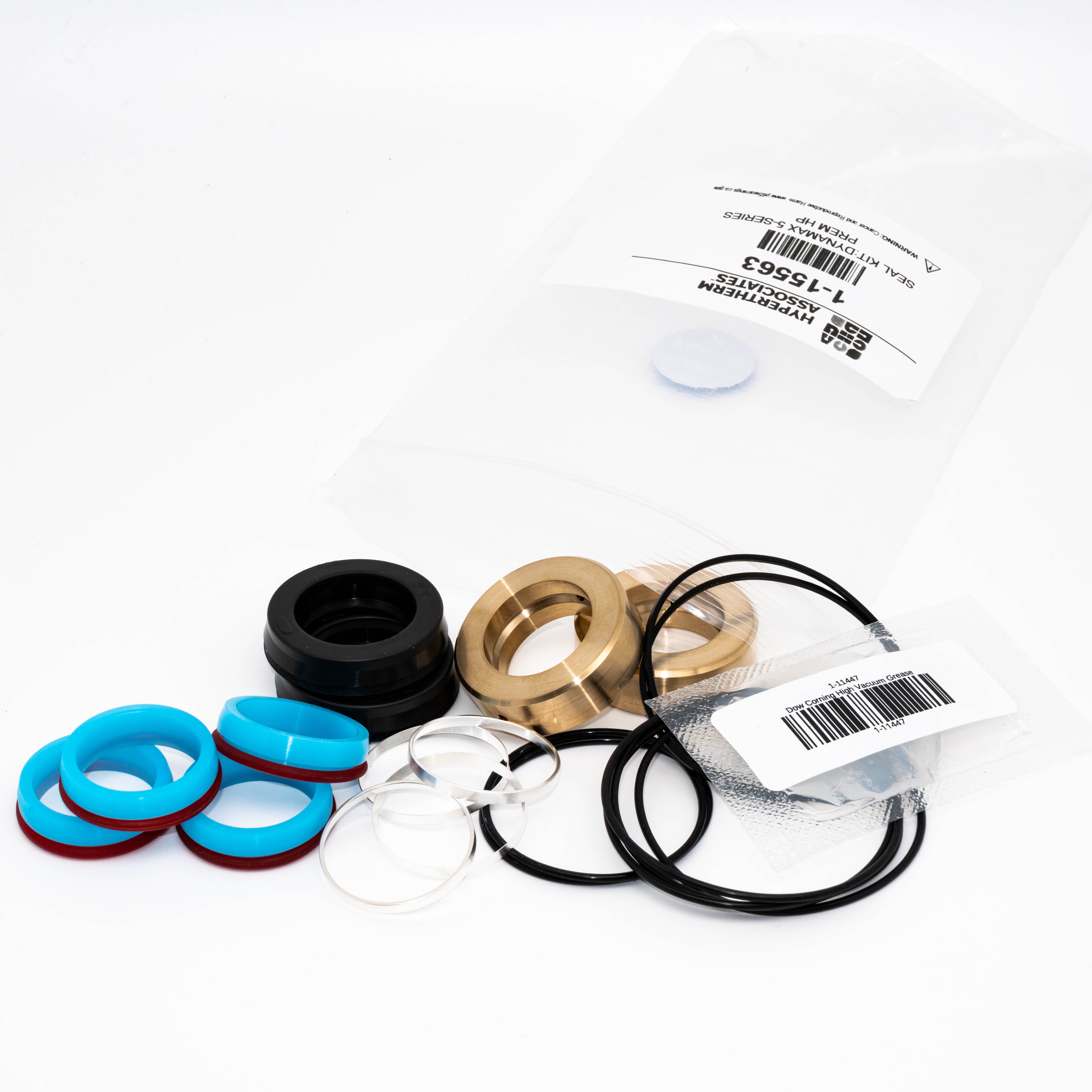

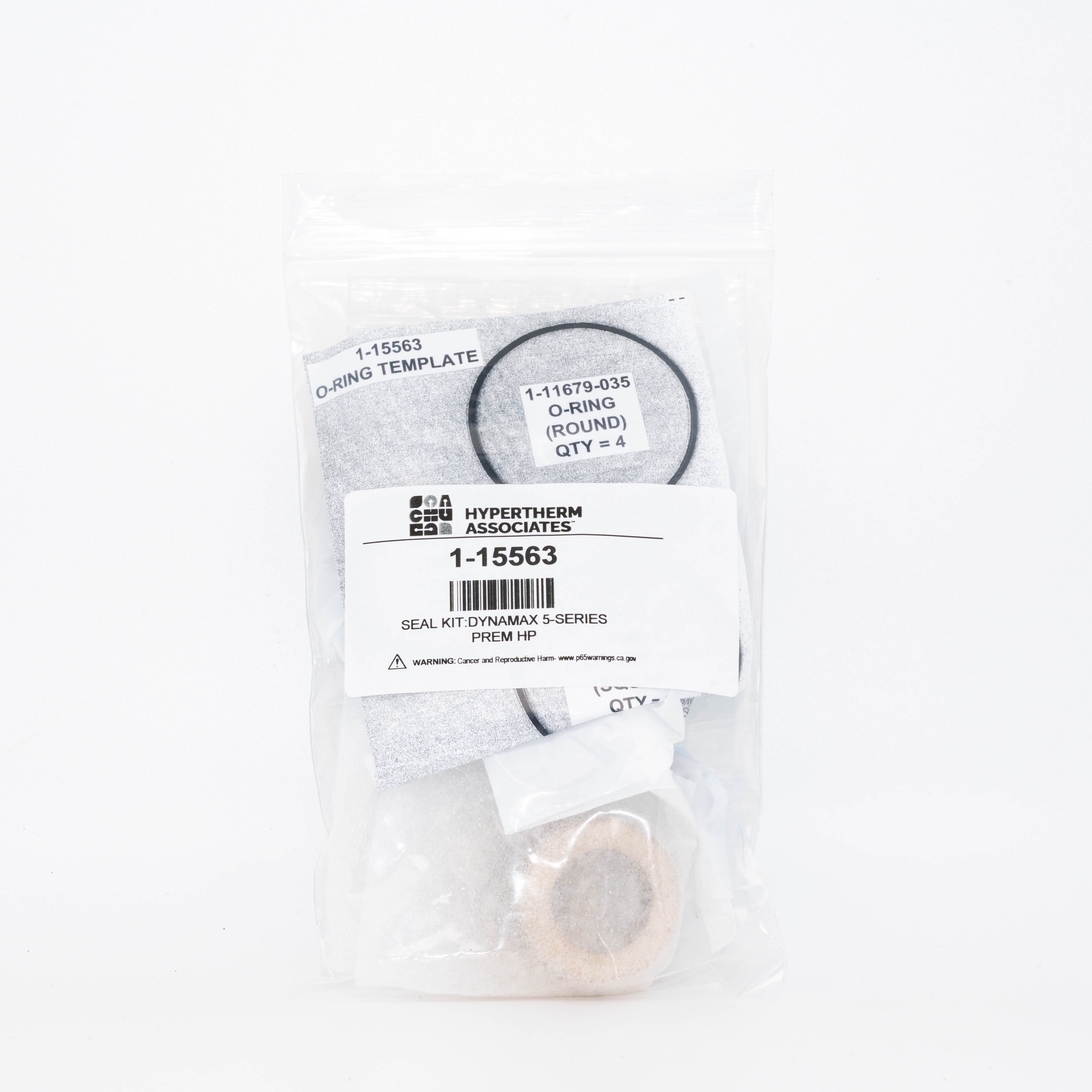

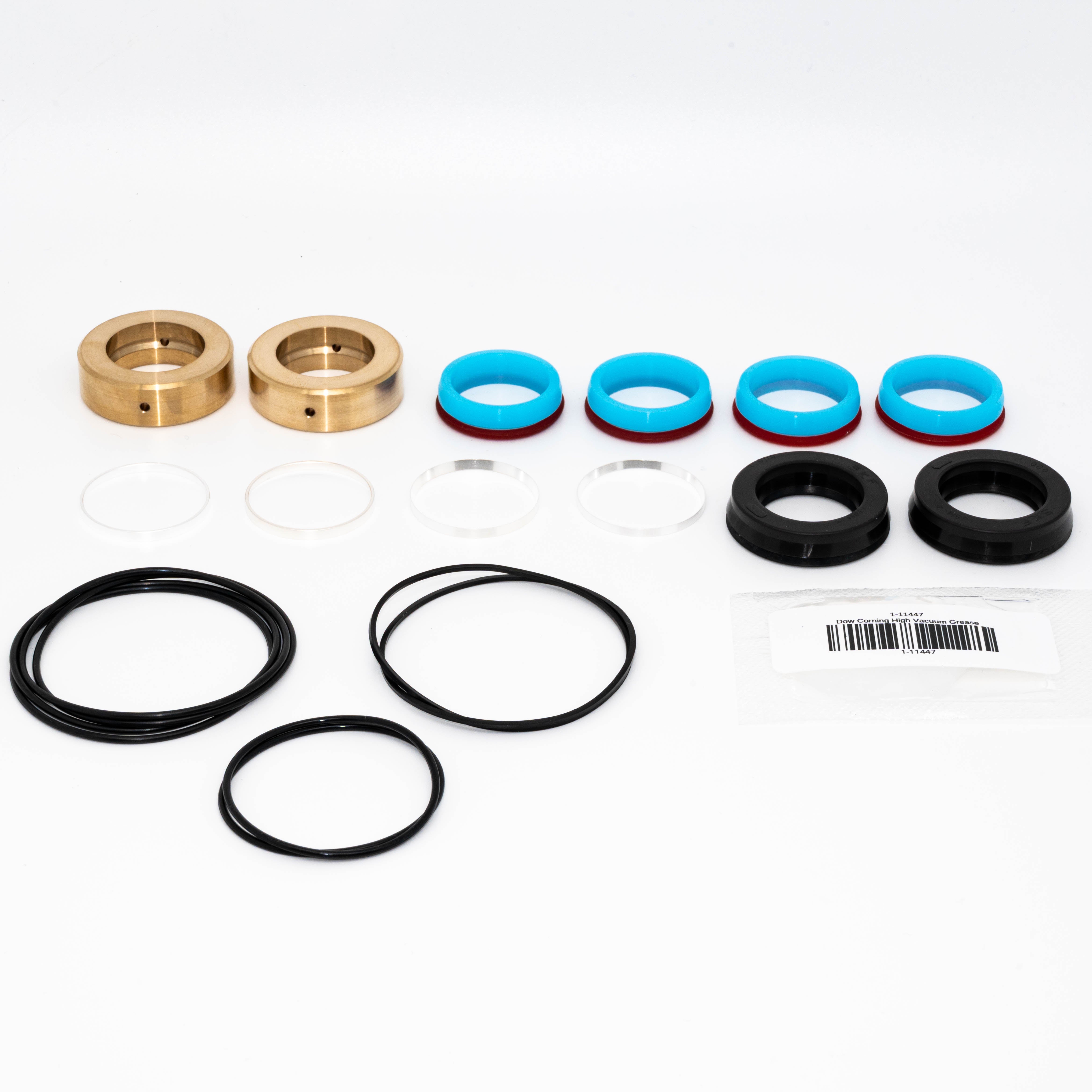

Kit includes:


1-11018 - HP Hoop 1 in - Qty: 4
1-11024 - HP Seal 1 in - Qty: 4
1-11447 - Packet of Goop - Qty: 1
1-11610 - Seal Back-Up - Qty: 2
1-11090 - Seal Rod - Qty: 2
11679-035 - O-Ring - Qty: 4
11679-031 - O-Ring - Qty: 2
11680-035 - O-Ring - Qty: 2


Used in: AS, HyPrecision, Predictive, Dynamax 5-Series. (NOT FOR ECHION / DYNAMAX 3 SERIES PUMPS)


Similar kits:


1-11451- Hypertherm High Pressure 1'' Seal Kit

1-17437- Premium HP Seal Kit with end cap gaskets
